How do You Manufacture Aluminium Profile?
1. Raw Material Preparation
The first step in manufacturing aluminium profiles is the preparation of raw materials. Aluminium ingots are the primary raw material used in the production process. These ingots are typically made from bauxite, which is refined to produce pure aluminium. The purity and quality of the aluminium ingots are crucial factors that determine the properties and performance of the final aluminium profile.
2. Melting and Alloying
Once the aluminium ingots are prepared, they are melted in a furnace at a high temperature. During the melting process, alloying elements such as silicon, magnesium, and copper may be added to enhance the properties of the aluminium. The alloying process is carefully controlled to ensure that the final alloy has the desired mechanical properties, corrosion resistance, and other characteristics.
3. Extrusion
After the alloy is melted and homogenized, it is transferred to an extrusion press. The extrusion process involves forcing the molten aluminium through a die with a specific cross-sectional shape. The die is designed to give the aluminium the desired profile, such as a square, rectangular, or circular shape. The extrusion press applies high pressure to push the aluminium through the die, creating a continuous length of extruded profile.
4. Cooling and Quenching
As the extruded profile emerges from the die, it is immediately cooled and quenched to solidify the aluminium. This is typically done by spraying water or using air cooling systems. Rapid cooling helps to improve the mechanical properties of the aluminium and reduces the likelihood of distortion or warping.

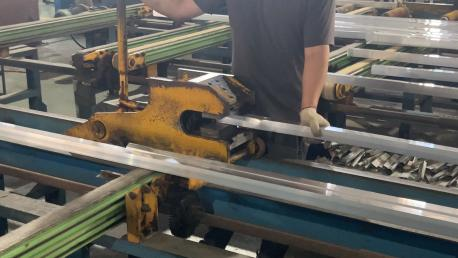

5. Straightening and Trimming
After cooling, the extruded profile may need to be straightened to remove any curvature or distortion that may have occurred during the extrusion process. Straightening is usually done using mechanical presses or rollers. Once straightened, the profile is trimmed to the desired length using saws or cutting machines.
6. Surface Treatment
To enhance the appearance and protect the aluminium from corrosion, a surface treatment may be applied. Common surface treatments include anodizing, powder coating, and painting. Anodizing involves creating a protective oxide layer on the surface of the aluminium, while powder coating and painting provide a decorative finish and additional protection.

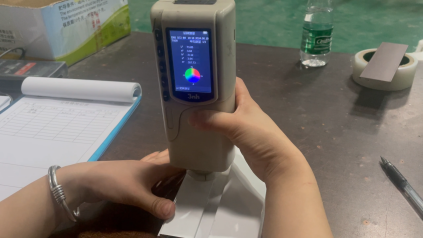

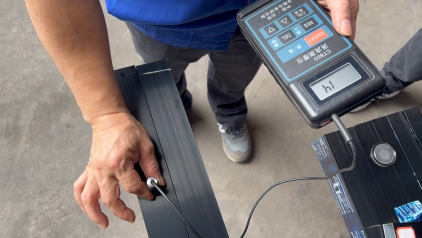

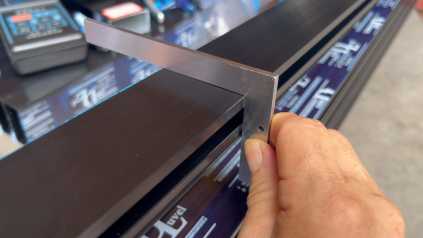

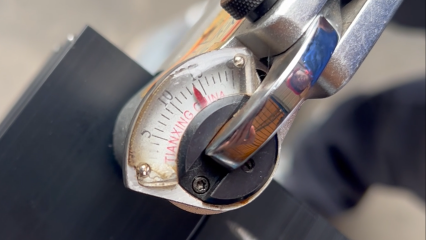

7. Quality Control
Throughout the manufacturing process, quality control measures are implemented to ensure that the aluminium profiles meet the required standards. This includes inspecting the raw materials, monitoring the melting and alloying process, checking the dimensions and shape of the extruded profile, and performing various tests to verify the mechanical properties and corrosion resistance of the aluminium.

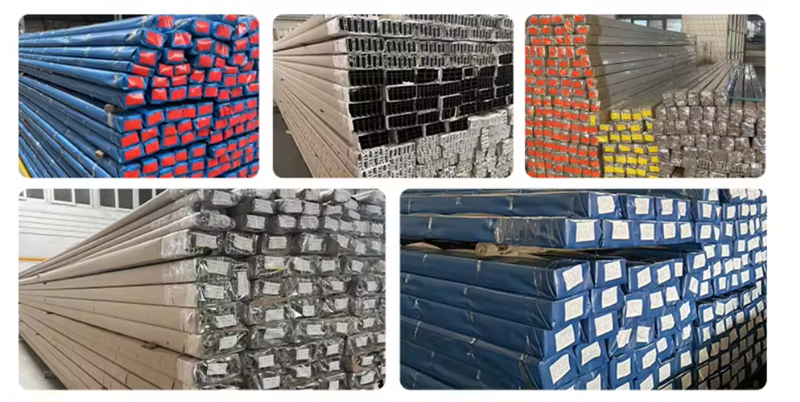

8. Packaging and Shipping
Once the aluminium profiles have passed quality control, they are packaged and shipped to customers. Packaging is designed to protect the profiles during transportation and storage. Common packaging methods include bundling, boxing, or crating.
In conclusion, the manufacturing of aluminium profiles is a complex and sophisticated process that requires advanced technology and expertise. From raw material preparation to extrusion, cooling, straightening, surface treatment, and quality control, each step is crucial in ensuring the production of high-quality aluminium profiles that meet the diverse needs of different industries.
